SoftType: TechnicalDataPackage
Represents an identified baselined collection of product data and documents that is provided to a third party for a particular purpose such as the design or manufacture of a product.

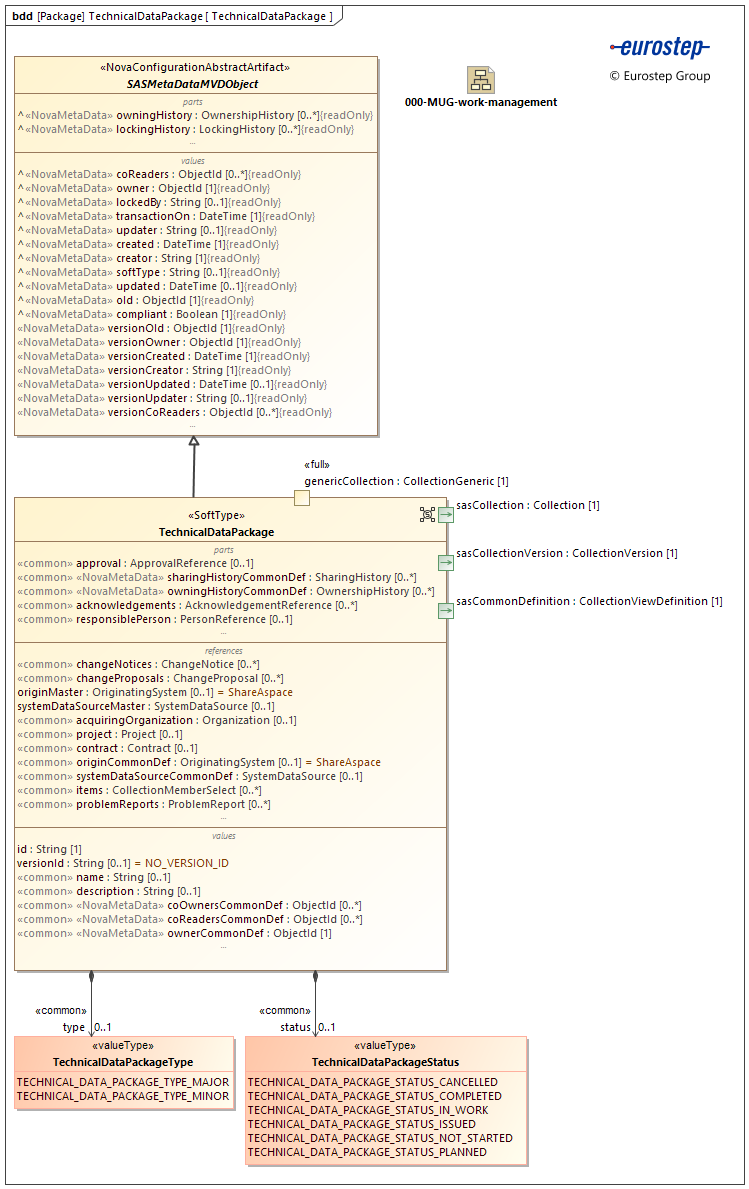

Diagrams
Properties
The properties for the SoftType are described in the following tabbed displays:
- Properties The public properties of the SoftType instance that can be set and modified by the user or by data import.
- Meta data Meta data about the SoftType instance that are set by the ShareAspace application.
acknowledgements [0..*] : AcknowledgementReference
The set of acknowledgements of the technical data package. This could be an acknowledgment that the technical data package has been received by a supplier.
acquiringOrganization [0..1] : Organization
The organization that is responsible for setting up and managing the technical data package.
approval [0..1] : ApprovalReference
The set of approvals of the technical data package.
changeNotices [0..*] : ChangeNotice
The change notices that are applicable to the product data referenced by the technical data pack.
changeProposals [0..*] : ChangeProposal
The change proposals that are applicable to the product data referenced by the technical data pack.
contract [0..1] : Contract
The contract to which the technical data package is subject.
description [0..1] : String
A text based description of the technical data package.
id [1] : String
The identifier for the technical data package. The identifier string provides an unambiguous reference to the technical data package in ShareAspace.
items [0..*] : CollectionMemberSelect
The set of items that make up of the technical data package.
name [0..1] : String
The name of the technical data package is a human readable label used to refer to the technical data package. The name is not an identifier and so does not uniquely identify a technical data package in ShareAspace.
originCommonDef [0..1] : OriginatingSystem
The origin of the common definition of the technical data package. If an origin is provided then the system representing the origin is the "master" system and the common definition can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the common definition can be edited in ShareAspace.
originMaster [0..1] : OriginatingSystem
The origin of the technical data package. If an origin is provided then the system representing the origin is the "master" system and the work package order can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the technical data package can be edited in ShareAspace.
problemReports [0..*] : ProblemReport
The change proposals that are applicable to the product data referenced by the technical data pack.
project [0..1] : Project
The project that is responsible for the management of the technical data package.
responsiblePerson [0..1] : PersonReference
The person that is responsible for the technical data package. Typical resposbilities include, approving the content, approving the content for release to customers and suppliers.
status [0..1] : TechnicalDataPackageStatus
The status of the technical data package where the status represents the state, or stage within a process, of the technical data package at a particular time.
systemDataSourceCommonDef [0..1] : SystemDataSource
The system from which the technical data package's common definition was loaded.
systemDataSourceMaster [0..1] : SystemDataSource
The system from which the technical data package was loaded.
type [0..1] : TechnicalDataPackageType
The category of the technical data package.
versionId [0..1] : String
An identifier for a version of the technical data package. Note that the identifier string provides an unambiguous reference to one version of the technical data package in ShareAspace.
compliant [1] : Boolean
A flag indicating if the Unit of Information is valid in regards to the SoftType data section and rules.
coOwners [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read write access to the object via a share pack.
coOwnersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read write access to the object's common definition via a share pack.
coReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the object via a share pack.
coReadersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read only access to the object's common definition via a share pack.
created [1] : DateTime
The date and time when the Unit of Information was created in the ShareAspace store.
creator [1] : String
The user that created the Unit of Information in the ShareAspace store.
lockedBy [0..1] : String
lockingHistory [0..*] : LockingHistory
oId [1] : ObjectId
The internal ShareAspace store key for the object instance.
owner [1] : ObjectId
The internal ShareAspace key of the Participant owning the object.
ownerCommonDef [1] : ObjectId
The internal ShareAspace key of the participant owning the object's common definition.
owningHistory [0..*] : OwnershipHistory
The historical record of owners for the object.
owningHistoryCommonDef [0..*] : OwnershipHistory
The set of historical records of the ownership of the object's common definition.
sharingHistory [0..*] : SharingHistory
The historical record of sharing information for the object.
sharingHistoryCommonDef [0..*] : SharingHistory
The set of historical records of the sharing and unsharing of the object's information stored on the common definition.
softType [0..1] : String
The SoftType identifier associated with the Unit of Information.
transactionOn [1] : DateTime
The date and time when the last change on the Unit of Information was performed (anywhere in the Unit of Information) in the ShareAspace store.
updated [0..1] : DateTime
The date and time when the Unit of Information was updated in the ShareAspace store.
updater [0..1] : String
The last user that updated the Unit of Information in the ShareAspace store.
versionCoReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the version via a share pack.
versionCreated [1] : DateTime
The date and time when the version was created in the ShareAspace store.
versionCreator [1] : String
The user that created the version in the ShareAspace store.
versionOId [1] : ObjectId
The internal ShareAspace store key for the version instance.
versionOwner [1] : ObjectId
The internal ShareAspace key of the Participant owning the version object.
versionUpdated [0..1] : DateTime
The date and time when the version was updated in the ShareAspace store.
versionUpdater [0..1] : String
The last user that updated the version in the ShareAspace store.
