SoftType: PhysicalItem
Represents a physical tangible individual artefact that can be uniquely identified.
A physical item is a thing that forms part of or is a tangible system, either as a single component, a complete item or a system, or sub-set of these.
A physical item is either procured, designed, fabricated, warehoused, assembled, distributed or maintained.
A physical item may be hardware, software or firmware, which is used, built, operated or maintained.
A physical item may refer to the specification i.e the part that was used to manufacture it.

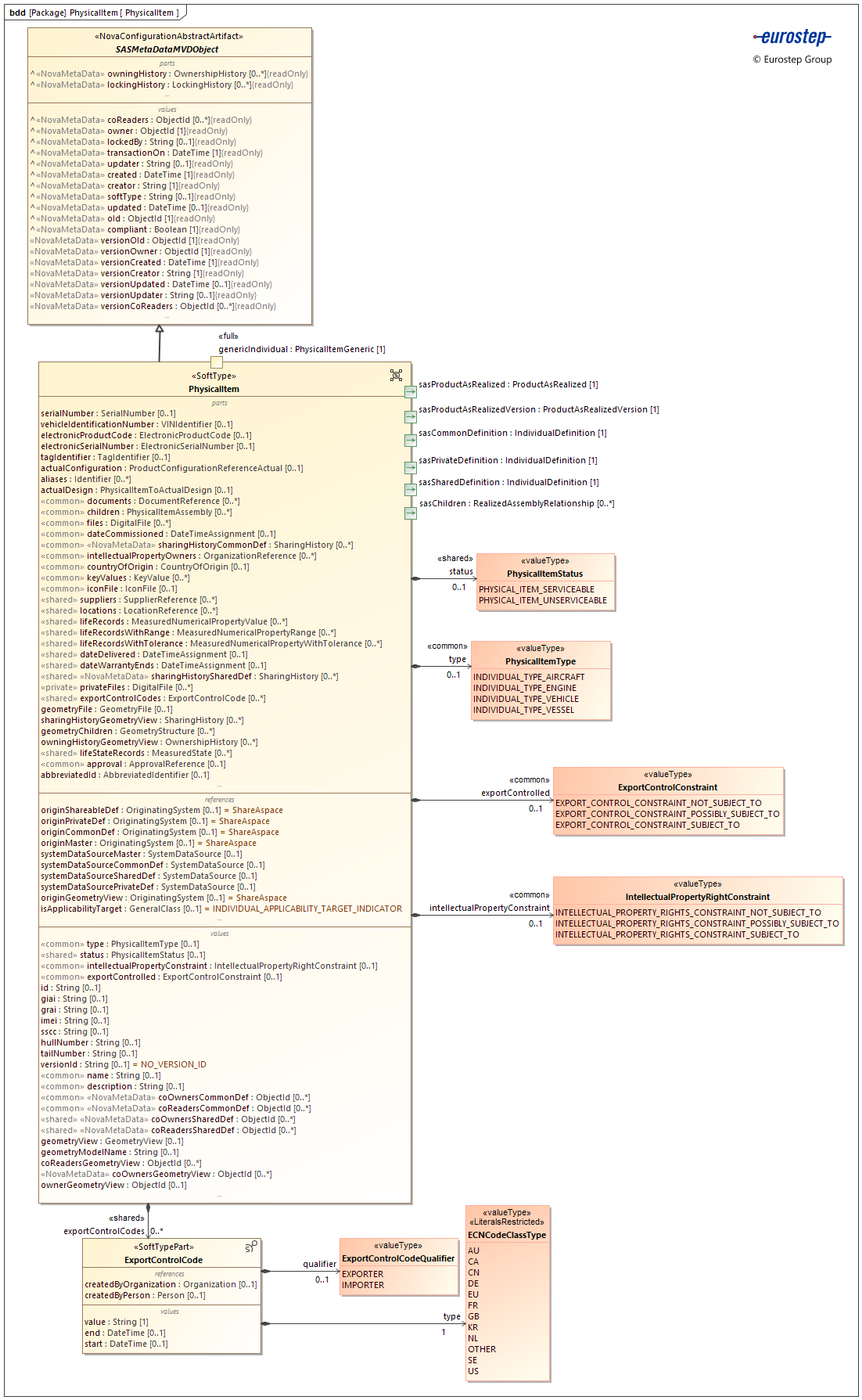

Diagrams
Properties
The properties for the SoftType are described in the following tabbed displays:
- Properties The public properties of the SoftType instance that can be set and modified by the user or by data import.
- Meta data Meta data about the SoftType instance that are set by the ShareAspace application.
abbreviatedId [0..1] : AbbreviatedIdentifier
A string that uniquely identifies the physical item. The string is typically an abbreviation of the name.
actualConfiguration [0..1] : ProductConfigurationReferenceActual
The part or product configuration representing the design or specification that was used to manufacture the physical item.
actualDesign [0..1] : PhysicalItemToActualDesign
The part representing the design or specification that was used to manufacture the physical item.
aliases [0..*] : Identifier
The set of alternative identifiers for the physical item. The combination of the identifier string and the organization that allocates the identifier provides an unambiguous reference to the physical item in ShareAspace.
approval [0..1] : ApprovalReference
The approval of the physical item.
children [0..*] : PhysicalItemAssembly
The set of hierarchical relationships that relate the physical item to its constituent set of physical items.
coReadersGeometryView [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read only access to the object's common definition via a share pack.
countryOfOrigin [0..1] : CountryOfOrigin
A code according to ISO 3166 that identifies the country of origin
dateCommissioned [0..1] : DateTimeAssignment
The date and time on which the physical item was ordered by an acquirer.
dateDelivered [0..1] : DateTimeAssignment
The date and time on which the physical item was delivered to an acquirer.
dateWarrantyEnds [0..1] : DateTimeAssignment
The date and time on which the physical item's warranty expires.
description [0..1] : String
A text based description of the physical Item.
documents [0..*] : DocumentReference
The set of documents that detail the physical item.
electronicProductCode [0..1] : ElectronicProductCode
The Electronic Product Code that identifies the physical item.
Unique identifier given to a physical individual product when associating it with an RFID chip.
electronicSerialNumber [0..1] : ElectronicSerialNumber
The Electronic Serial Number (ESN) that identifies the physical item.
ESNs are currently mainly used to identify CDMA phones, compared to International Mobile Equipment Identity (IMEI) numbers used by all GSM phones.
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
exportControlCodes [0..*] : ExportControlCode
A set of codes that identify a categorization of items based on the nature of the product, i.e. type of commodity, software, or technology and its respective technical parameters for export control purposes. The codes are typically defined by a countries export control authority. Hence a country is associated with the code. So for ITAR ECCN code the country would be US. It is also the case that the organization exporting material may have a different view on the categorization to the organization importing it and integrating the material into a higher assembly. Hence an import or export qualifier is used to differentiate between the two codes.
exportControlled [0..1] : ExportControlConstraint
An indication as to whether the physical item is subject to export control regulations.
files [0..*] : DigitalFile
The set of files that are managed by the physical item.
geometryChildren [0..*] : GeometryStructure
The set of hierarchical relationships that define a geometrical relationship of the part to its constituent parts.
geometryFile [0..1] : GeometryFile
The file that provides a geometrical representation of the part.
geometryModelName [0..1] : String
The name of the geometrical model that provides a representation of the part.
geometryView [0..1] : GeometryView
The type of geometrical model associated with the part. For example: 2D or 3D.
giai [0..1] : String
The Global Individual Asset Identifier (GIAI) that identifies the physical item.
Globally unique identifier given by the GS1 organization. Companies can apply a GIAI on any asset to uniquely identify and manage that asset. This could be a computer, desk, vehicle, piece of transport equipment, or spare part, as just a few examples.
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
grai [0..1] : String
The Global Returnable Asset Identifier(GRAI) that identifies the physical item.
Globally unique identifier given by the GS1 organization, especially suitable for the management of reusable transport items, transport equipment, and tools. It can identify these returnable assets by type and if needed also individually for tracking and sorting purposes.
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
hullNumber [0..1] : String
A serial identification number to uniquely identify vessels.
A serial number is a unique identifier assigned incrementally or sequentially to an item, to uniquely identify it.
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
iconFile [0..1] : IconFile
The set of files external to ShareAspace that are referenced by the Organization. For example an image of the physical item stored outside of ShareAspace.
id [0..1] : String
The identifier for the physical item. The identifier string provides an unambiguous reference to the physical item in ShareAspace.
imei [0..1] : String
The International Mobile Equipment Identity Identifier(IMEI) that identifies the physical item.
Globally unique identifier (number) given by the GSMA organization to identify 3GPP and iDEN mobile phones, as well as some satellite phones.
intellectualPropertyConstraint [0..1] : IntellectualPropertyRightConstraint
An indication as to whether the physical item is subject to any intellectual property rights that might need to be considered when sharing the information.
intellectualPropertyOwners [0..*] : OrganizationReference
The organizations that own the intellectual property for the physical item.
isApplicabilityTarget [0..1] : GeneralClass
An indication that the PhysicalItem can be the target of applicability. I.e. component parts and activities can be designated as being applicable to the item. Typically this occuras when the PhysicalItem is designated as an end item or product for configuration management purposes.
keyValues [0..*] : KeyValue
A set of user defined name and strings value pairs. Note that these name value pairs are not indexed and therefor cannot be searched for.
lifeRecords [0..*] : MeasuredNumericalPropertyValue
The set of properties that have been measured and recorded during the life of the physical item.
lifeRecordsWithRange [0..*] : MeasuredNumericalPropertyRange
The set of properties that have been measured and recorded during the life of the physical item.
lifeRecordsWithTolerance [0..*] : MeasuredNumericalPropertyWithTolerance
The set of properties that have been measured and recorded during the life of the physical item.
lifeStateRecords [0..*] : MeasuredState
The set of states that the physical items has been in that have been recorded during the life of the physical item.
locations [0..*] : LocationReference
The set of locations that the physical item has been in.
name [0..1] : String
The name of the physical item is a human readable label used to refer to the physical item. The name is not an identifier and so does not uniquely identify a physical item in ShareAspace.
originCommonDef [0..1] : OriginatingSystem
The origin of the common definition of the physical item. If an origin is provided then the system representing the origin is the "master" system and the common definition can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the common definition can be edited in ShareAspace.
originGeometryView [0..1] : OriginatingSystem
The origin of the geometry definition of the part. If an origin is provided then the system representing the origin is the "master" system and the geometry definition can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the geometry definition can be edited in ShareAspace.
originMaster [0..1] : OriginatingSystem
The origin of the physical item. If an origin is provided then the system representing the origin is the "master" system and the physical item can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the physical item can be edited in ShareAspace.
originPrivateDef [0..1] : OriginatingSystem
The origin of the private definition of the physical item. If an origin is provided then the system representing the origin is the "master" system and the private definition can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the private definition can be edited in ShareAspace.
originShareableDef [0..1] : OriginatingSystem
The origin of the shareable definition of the physical item. If an origin is provided then the system representing the origin is the "master" system and the shareable definition can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the shareable definition can be edited in ShareAspace.
ownerGeometryView [0..1] : ObjectId
The internal ShareAspace key of the participant owning the object's geometry definition.
owningHistoryGeometryView [0..*] : OwnershipHistory
The set of historical records of the ownership of the object's geometry definition.
privateFiles [0..*] : DigitalFile
The set of files that are managed by the physical item and are not to be shared
serialNumber [0..1] : SerialNumber
The Serial Number (S/N) that identifies the physical item.
A serial number is a unique identifier assigned incrementally or sequentially to an item, to uniquely identify it.
sharingHistoryGeometryView [0..*] : SharingHistory
The set of historical records of the sharing and unsharing of the object's information stored on the geometry definition.
sscc [0..1] : String
The Serial Shipping Container Code (SSCC) that identifies the physical item.
Globally unique identifier given by the GS1 organization, to identify a support unit, which can be any combination of trade items packaged together for storage and/or transport purposes; for example a case, pallet or parcel.
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
status [0..1] : PhysicalItemStatus
The status of the physical item where the status represents the state, or stage within a process, of the physical item at a particular time.
suppliers [0..*] : SupplierReference
The set of organizations that have supplied the physical item.
systemDataSourceCommonDef [0..1] : SystemDataSource
The system from which the physical item's common definition was loaded.
systemDataSourceMaster [0..1] : SystemDataSource
The system from which the physical item was loaded.
systemDataSourcePrivateDef [0..1] : SystemDataSource
The system from which the physical item's private definition was loaded.
systemDataSourceSharedDef [0..1] : SystemDataSource
The system from which the physical item's shareable definition was loaded.
tagIdentifier [0..1] : TagIdentifier
The Tag Identifier (TID) that identifies the physical item.
The unique identifier of a RFID chip given by the manufacturer of the chip.
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
tailNumber [0..1] : String
The Tail Number that identifies the physical item.
Globally unique identifier given to a single aircraft, required by international convention to be marked on the exterior of every civil aircraft. The registration indicates the aircraft's country of registration, and functions much like an automobile license plate or a ship registration. This code must also appear in its Certificate of Registration, issued by the relevant National Aviation Authority (NAA). An aircraft can only have one registration, in one jurisdiction, though it is changeable over the life of the aircraft.
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
type [0..1] : PhysicalItemType
The category of the physical item.
vehicleIdentificationNumber [0..1] : VINIdentifier
The Vehicle Identification Number (VIN) that identifies the physical item.
Global unique code, including a serial number, used by the automotive industry to identify individual motor vehicles, towed vehicles, motorcycles, scooters and mopeds, as defined in ISO 3779 (content and structure) and ISO 4030 (location and attachment).
The identifier string provides an unambiguous reference to the physical item in ShareAspace.
versionId [0..1] : String
An identifier for a version of the physical item. Note that the identifier string provides an unambiguous reference to one version of the physical item in ShareAspace.
compliant [1] : Boolean
A flag indicating if the Unit of Information is valid in regards to the SoftType data section and rules.
coOwners [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read write access to the object via a share pack.
coOwnersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read write access to the object's common definition via a share pack.
coOwnersGeometryView [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read write access to the object's geometry definition via a share pack.
coOwnersSharedDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read write access to the object's shareable definition via a share pack.
coReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the object via a share pack.
coReadersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read only access to the object's common definition via a share pack.
coReadersSharedDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read only access to the object's common definition via a share pack.
created [1] : DateTime
The date and time when the Unit of Information was created in the ShareAspace store.
creator [1] : String
The user that created the Unit of Information in the ShareAspace store.
lockedBy [0..1] : String
lockingHistory [0..*] : LockingHistory
oId [1] : ObjectId
The internal ShareAspace store key for the object instance.
owner [1] : ObjectId
The internal ShareAspace key of the Participant owning the object.
owningHistory [0..*] : OwnershipHistory
The historical record of owners for the object.
sharingHistory [0..*] : SharingHistory
The historical record of sharing information for the object.
sharingHistoryCommonDef [0..*] : SharingHistory
The set of historical records of the sharing and unsharing of the object's information stored on the common definition.
sharingHistorySharedDef [0..*] : SharingHistory
The set of historical records of the sharing and unsharing of the object's information stored on the shareable definition.
softType [0..1] : String
The SoftType identifier associated with the Unit of Information.
transactionOn [1] : DateTime
The date and time when the last change on the Unit of Information was performed (anywhere in the Unit of Information) in the ShareAspace store.
updated [0..1] : DateTime
The date and time when the Unit of Information was updated in the ShareAspace store.
updater [0..1] : String
The last user that updated the Unit of Information in the ShareAspace store.
versionCoReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the version via a share pack.
versionCreated [1] : DateTime
The date and time when the version was created in the ShareAspace store.
versionCreator [1] : String
The user that created the version in the ShareAspace store.
versionOId [1] : ObjectId
The internal ShareAspace store key for the version instance.
versionOwner [1] : ObjectId
The internal ShareAspace key of the Participant owning the version object.
versionUpdated [0..1] : DateTime
The date and time when the version was updated in the ShareAspace store.
versionUpdater [0..1] : String
The last user that updated the version in the ShareAspace store.
