SoftType: InformationSetTemplateSection
Represent a specifcation of a grouping of information that will be requested. The grouping can be hierarchically structured.

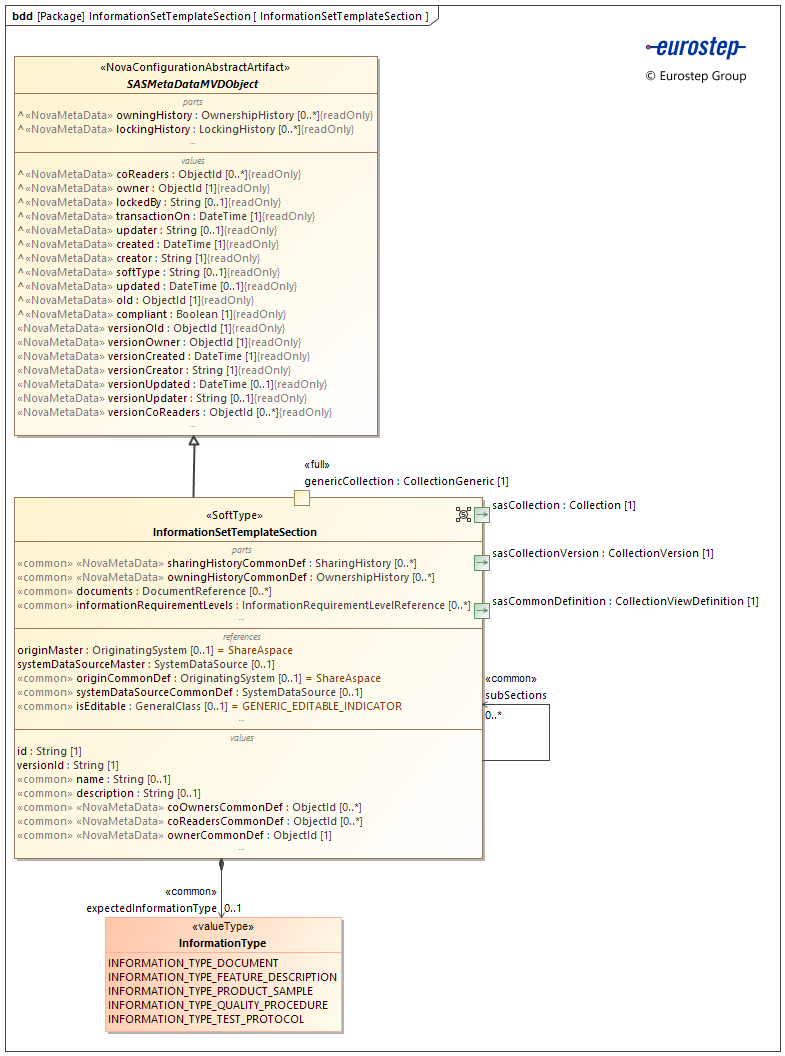

Diagrams
Properties
The properties for the SoftType are described in the following tabbed displays:
- Properties The public properties of the SoftType instance that can be set and modified by the user or by data import.
- Meta data Meta data about the SoftType instance that are set by the ShareAspace application.
description [0..1] : String
A text based description of the information set template section.
documents [0..*] : DocumentReference
The set of supporting documentation for the information set template section.
expectedInformationType [0..1] : InformationType
The category of the information that is requested.
id [1] : String
The identifier for the information set template section. The identifier string provides an unambiguous reference to the information set template section in ShareAspace.
informationRequirementLevels [0..*] : InformationRequirementLevelReference
The set of flags indicating if the requested information is optional, mandatory or to be provided on demand at a given level.
isEditable [0..1] : GeneralClass
An indication that the PhysicalItem can be the target of applicability. I.e. component parts and activities can be designated as being applicable to the item. Typically this occuras when the PhysicalItem is designated as an end item or product for configuration management purposes.
name [0..1] : String
The name of the information set template section is a human readable label used to refer to the information set template section. The name is not an identifier and so does not uniquely identify a information set template section in ShareAspace.
originCommonDef [0..1] : OriginatingSystem
The origin of the common definition of the information set template section. If an origin is provided then the system representing the origin is the master system and the common definition can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the common definition can be edited in ShareAspace.
originMaster [0..1] : OriginatingSystem
The origin of the information set template section. If an origin is provided then the system representing the origin is the master system and the information set template section can only be updated via an input from that system. If no origin is provided, the origin is assumed to be ShareAspace and the information set template section can be edited in ShareAspace.
subSections [0..*] : InformationSetTemplateSection
The information set template sections that are constituents of or subsections of this information set template section.
systemDataSourceCommonDef [0..1] : SystemDataSource
The system from which the information set template section's common definition was loaded.
systemDataSourceMaster [0..1] : SystemDataSource
The system from which the information set template section was loaded.
versionId [1] : String
An identifier for a version of the information set template section. Note that the identifier string provides an unambiguous reference to one version of the information set template section in ShareAspace.
compliant [1] : Boolean
A flag indicating if the Unit of Information is valid in regards to the SoftType data section and rules.
coOwners [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read write access to the object via a share pack.
coOwnersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read write access to the object's common definition via a share pack.
coReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the object via a share pack.
coReadersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read only access to the object's common definition via a share pack.
created [1] : DateTime
The date and time when the Unit of Information was created in the ShareAspace store.
creator [1] : String
The user that created the Unit of Information in the ShareAspace store.
lockedBy [0..1] : String
lockingHistory [0..*] : LockingHistory
oId [1] : ObjectId
The internal ShareAspace store key for the object instance.
owner [1] : ObjectId
The internal ShareAspace key of the Participant owning the object.
ownerCommonDef [1] : ObjectId
The internal ShareAspace key of the participant owning the object's common definition.
owningHistory [0..*] : OwnershipHistory
The historical record of owners for the object.
owningHistoryCommonDef [0..*] : OwnershipHistory
The set of historical records of the ownership of the object's common definition.
sharingHistory [0..*] : SharingHistory
The historical record of sharing information for the object.
sharingHistoryCommonDef [0..*] : SharingHistory
The set of historical records of the sharing and unsharing of the object's information stored on the common definition.
softType [0..1] : String
The SoftType identifier associated with the Unit of Information.
transactionOn [1] : DateTime
The date and time when the last change on the Unit of Information was performed (anywhere in the Unit of Information) in the ShareAspace store.
updated [0..1] : DateTime
The date and time when the Unit of Information was updated in the ShareAspace store.
updater [0..1] : String
The last user that updated the Unit of Information in the ShareAspace store.
versionCoReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the version via a share pack.
versionCreated [1] : DateTime
The date and time when the version was created in the ShareAspace store.
versionCreator [1] : String
The user that created the version in the ShareAspace store.
versionOId [1] : ObjectId
The internal ShareAspace store key for the version instance.
versionOwner [1] : ObjectId
The internal ShareAspace key of the Participant owning the version object.
versionUpdated [0..1] : DateTime
The date and time when the version was updated in the ShareAspace store.
versionUpdater [0..1] : String
The last user that updated the version in the ShareAspace store.
