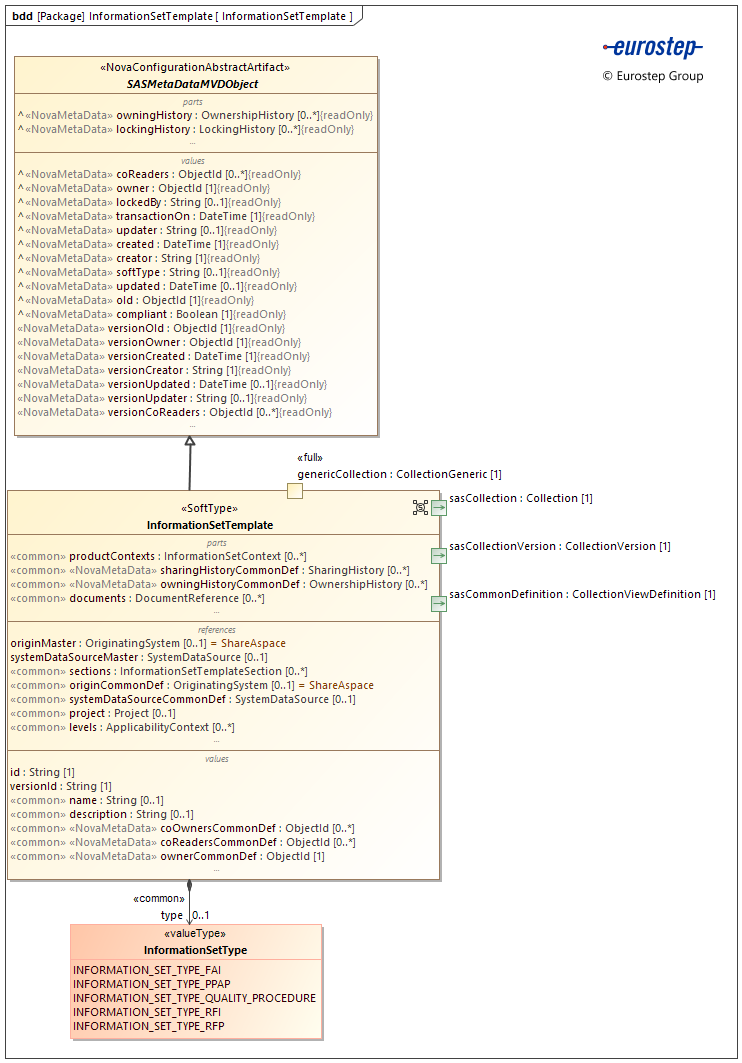

Represents a specification of a structured set of information that will be requested. The specification defines what information is requested, whether the provision of that information is mandatory or optional. The specification also defines how the requested information should be hierarchically organized into groups. These groups are represented by information set template sections.
The requested information will be delivered back to the requestor of the information by an information set that conforms to the structure and content requested by the information set template.
The properties for the SoftType are described in the following tabbed displays:
- Properties The public properties of the SoftType instance that can be set and modified by the user or by data import.
- Meta data Meta data about the SoftType instance that are set by the ShareAspace application.
description [0..1] : String
A text based description of the information set template.
documents [0..*] : DocumentReference
The set of supporting documentation for the information set template
id [1] : String
The identifier for the information set template.
The identifier string provides an unambiguous reference to the information set template in ShareAspace.
levels [0..*] : ApplicabilityContext
The information requested may change as a project processes. Initially a request could have a number of sections that are optional. Later in the project, the provision of sections are mandatory. These stages or levels in the request for information process are represented by the referenced ApplicabilityContext
name [0..1] : String
The name of the information set template is a human readable label used to refer to the information set template. The name is not an identifier and so does not uniquely identify a information set template in ShareAspace.
originCommonDef [0..1] : OriginatingSystem
The origin of the common definition of the information set template.
If an origin is provided then the system representing the origin is the master system and the common definition can only be updated via an input from that system.
If no origin is provided, the origin is assumed to be ShareAspace and the common definition can be edited in ShareAspace.
originMaster [0..1] : OriginatingSystem
The origin of the information set template.
If an origin is provided then the system representing the origin is the master system and the information set template can only be updated via an input from that system.
If no origin is provided, the origin is assumed to be ShareAspace and the information set template can be edited in ShareAspace.
productContexts [0..*] : InformationSetContext
The set of product data that provides the context within which the information is requested.
project [0..1] : Project
The project that is responsible for the management of the information set template.
sections [0..*] : InformationSetTemplateSection
The information set template sections that make up the information set template.
systemDataSourceCommonDef [0..1] : SystemDataSource
The system from which the information set template's common definition was loaded.
systemDataSourceMaster [0..1] : SystemDataSource
The system from which the information set template was loaded.
type [0..1] : InformationSetType
The category of the information set template.
versionId [1] : String
An identifier for a version of the information set template. Note that the identifier string provides an unambiguous reference to one version of the information set template in ShareAspace.
compliant [1] : Boolean
A flag indicating if the Unit of Information is valid in regards to the SoftType data section and rules.
coOwners [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read write access to the object via a share pack.
coOwnersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read write access to the object's common definition via a share pack.
coReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the object via a share pack.
coReadersCommonDef [0..*] : ObjectId
The set of internal ShareAspace keys identifying participants that have currently read only access to the object's common definition via a share pack.
created [1] : DateTime
The date and time when the Unit of Information was created in the ShareAspace store.
creator [1] : String
The user that created the Unit of Information in the ShareAspace store.
lockedBy [0..1] : String
lockingHistory [0..*] : LockingHistory
oId [1] : ObjectId
The internal ShareAspace store key for the object instance.
owner [1] : ObjectId
The internal ShareAspace key of the Participant owning the object.
ownerCommonDef [1] : ObjectId
The internal ShareAspace key of the participant owning the object's common definition.
owningHistory [0..*] : OwnershipHistory
The historical record of owners for the object.
owningHistoryCommonDef [0..*] : OwnershipHistory
The set of historical records of the ownership of the object's common definition.
sharingHistory [0..*] : SharingHistory
The historical record of sharing information for the object.
sharingHistoryCommonDef [0..*] : SharingHistory
The set of historical records of the sharing and unsharing of the object's information stored on the common definition.
softType [0..1] : String
The SoftType identifier associated with the Unit of Information.
transactionOn [1] : DateTime
The date and time when the last change on the Unit of Information was performed (anywhere in the Unit of Information) in the ShareAspace store.
updated [0..1] : DateTime
The date and time when the Unit of Information was updated in the ShareAspace store.
updater [0..1] : String
The last user that updated the Unit of Information in the ShareAspace store.
versionCoReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the version via a share pack.
versionCreated [1] : DateTime
The date and time when the version was created in the ShareAspace store.
versionCreator [1] : String
The user that created the version in the ShareAspace store.
versionOId [1] : ObjectId
The internal ShareAspace store key for the version instance.
versionOwner [1] : ObjectId
The internal ShareAspace key of the Participant owning the version object.
versionUpdated [0..1] : DateTime
The date and time when the version was updated in the ShareAspace store.
versionUpdater [0..1] : String
The last user that updated the version in the ShareAspace store.
