SoftType: SharePackDefinition
A ShareAspace application object that represents a set of rules that should be applied when a set of objects are shared by a share pack. The rules define:
- the participant that is responsible for sharing the objects;
- the participant with whom the objects are shared;
- the role that a user must have in order to share the objects;
- a navigation structure that defines how information to be shared can be identified by traversing from a scoped object. E.g. a part assembly defined by a structure. The sharing of the part assembly will result in the assembly structure being traversed and all components of the assembly being shared as well.
- the type of sharing should be applied (i.e. read-write or read only)
Note
This SoftType is a core application SoftType and therefore should not be modified. Only instances of this SoftType can be created.

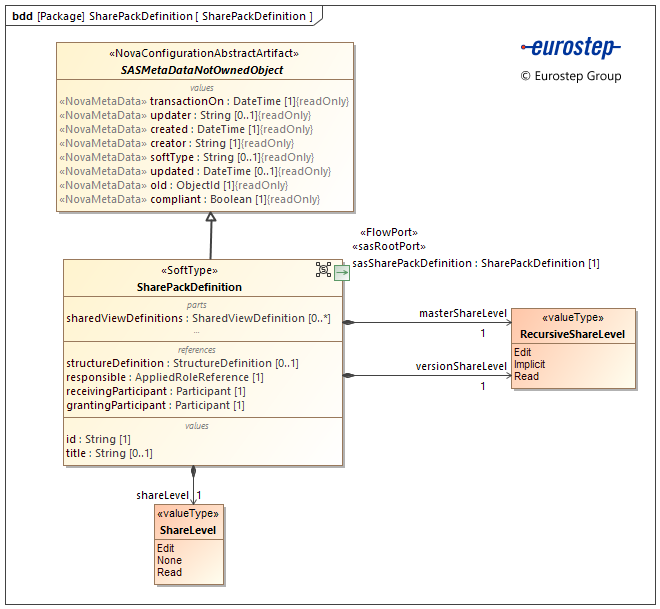

Diagrams
Properties
The properties for the SoftType are described in the following tabbed displays:
- Properties The public properties of the SoftType instance that can be set and modified by the user or by data import.
- Meta data Meta data about the SoftType instance that are set by the ShareAspace application.
