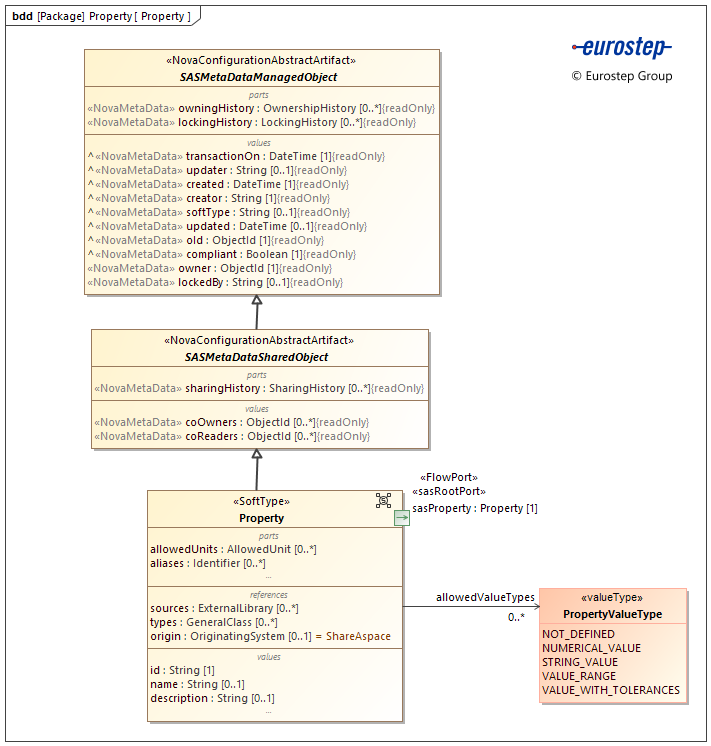

Represents the definition of a particular quality or feature of a product or activity data.
A Property may reflect physics or arbitrary user defined measurements.
The properties for the SoftType are described in the following tabbed displays:
- Properties The public properties of the SoftType instance that can be set and modified by the user or by data import.
- Meta data Meta data about the SoftType instance that are set by the ShareAspace application.
aliases [0..*] : Identifier
The set of alternative identifiers for the property.
The combination of the identifier string and the property that allocates the identifier provides an unambiguous reference to the property in ShareAspace.
allowedUnits [0..*] : AllowedUnit
The set of units that can be used when expressing the value of the property.
allowedValueTypes [0..*] : PropertyValueType
The set of value types that can be used to express the property values.
description [0..1] : String
A text based description of the property.
id [1] : String
The identifier for the property.
The identifier string provides an unambiguous reference to the property in ShareAspace.
name [0..1] : String
The name of the property is a human readable label used to refer to the property. The name is not an identifier and so does not uniquely identify a property in ShareAspace.
origin [0..1] : OriginatingSystem
The origin of the property.
If an origin is provided then the system representing the origin is the "master" system and the property can only be updated via an input from that system.
If no origin is provided, the origin is assumed to be ShareAspace and the property can be edited in ShareAspace.
sources [0..*] : ExternalLibrary
The set of external library from which the property was loaded to ShareAspace.
The external library provides the definition of the class.
types [0..*] : GeneralClass
The set of types of the property. Typically used to reference a class of properties
compliant [1] : Boolean
A flag indicating if the Unit of Information is valid in regards to the SoftType data section and rules.
coOwners [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read write access to the object via a share pack.
coReaders [0..*] : ObjectId
The list of internal ShareAspace key of Participants that have currently read only access to the object via a share pack.
created [1] : DateTime
The date and time when the Unit of Information was created in the ShareAspace store.
creator [1] : String
The user that created the Unit of Information in the ShareAspace store.
lockedBy [0..1] : String
lockingHistory [0..*] : LockingHistory
oId [1] : ObjectId
The internal ShareAspace store key for the object instance.
owner [1] : ObjectId
The internal ShareAspace key of the Participant owning the object.
owningHistory [0..*] : OwnershipHistory
The historical record of owners for the object.
sharingHistory [0..*] : SharingHistory
The historical record of sharing information for the object.
softType [0..1] : String
The SoftType identifier associated with the Unit of Information.
transactionOn [1] : DateTime
The date and time when the last change on the Unit of Information was performed (anywhere in the Unit of Information) in the ShareAspace store.
updated [0..1] : DateTime
The date and time when the Unit of Information was updated in the ShareAspace store.
updater [0..1] : String
The last user that updated the Unit of Information in the ShareAspace store.
